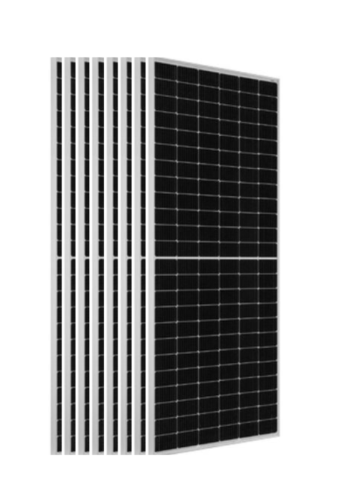

Canadian Solar 550W Mono Solar Panel

Price On Demand!

• Nominal Max. Power (Pmax): 550 W
• Opt. Operating Voltage (Vmp): 41.7 V
• Opt. Operating Current (Imp): 13.20 A
• Open Circuit Voltage (Voc): 49.6 V
• Short Circuit Current (Isc): 14.00 A
• Module Efficiency: 21.5%
• Operating Temperature: -40°C ~ +85°C
• Max. System Voltage: 1500V (IEC/UL) or 1000V (IEC/UL)
• Module Fire Performance: TYPE 1 (UL 61730 1500V) or TYPE 2 (UL 61730 1000V) or CLASS C (IEC 61730)
• Max. Series Fuse Rating: 25A
• Application Classification: Class A
• Power Tolerance: 0 ~ + 10 W
• Cell Type: Mono-crystalline
• Cell Arrangement: 144 [2 x (12 x 6) ]
• Dimensions: 2261 ˣ 1134 ˣ 30 mm
• Weight: 27.6 kg
• Front Cover: 3.2 mm tempered glass with anti-reflective coating
• Frame: Anodized aluminum alloy
• J-Box: IP68, 3 bypass diodes
• Cable: 4 mm2 (IEC), 12 AWG (UL)
• Cable Length (Including Connector): 410 mm (16.1 in) (+) / 290 mm (11.4 in) (-) or customized length*
• Connector: T6 or MC4-EVO2
• Per Pallet: 35 pieces
