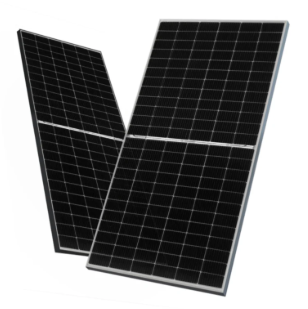

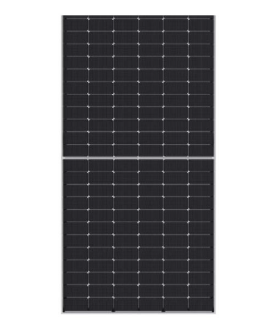

Jinko Solar 575w Half Cell Mono Panel

Price On Demand

• Maximum Power (Pmax): 575 Wp
• Voltage at Maximum Power (Vmpp): 42.22 V
• Current at Maximum Power (Impp): 13.62 A
• Open Circuit Voltage (Voc): 50.88 V
• Short Circuit Current (Isc): 14.39 A
• Panel Efficiency: 22.26 %
• Power Tolerance (Positive): + 3 %
• Temperature Coefficient of Pmax: -0.3 %/°C
• Temperature Coefficient of Voc: -0.25 %/°C
• Temperature Coefficient of Isc: 0.046 %/°C
• Maximum System Voltage: 1500 V
• Series Fuse Rating: 25 A
• Dimensions: 2278 x 1134 x 35 mm
• Weight: 28 kg
• Cell Type: Monocrystalline
• Cell Number: 144
• Glass Type: Anti-reflection Coating, Tempered
• Glass Thickness: 3.2 mm
• Frame Type: Anodized Aluminum
• Junction Box Protection Class: IP 68
• Cable Crossection: 4 mm²
