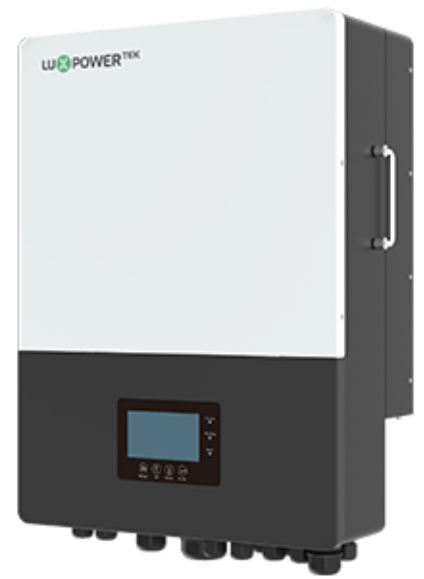

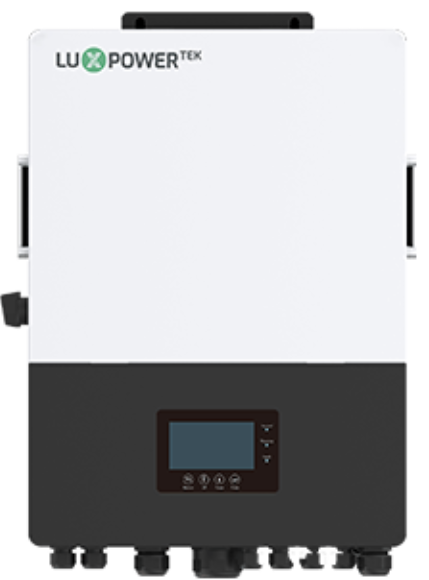

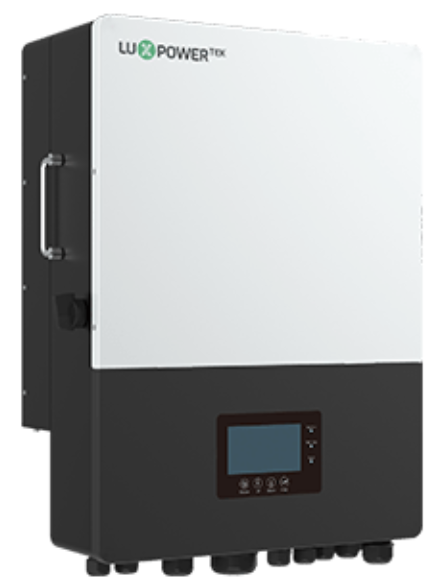

Luxpower 12Kw Single Phase Hybrid Inverter

Luxpower 12Kw Single Phase Hybrid Inverter

R 28,987.50 ZAR
R 28,987.50 ZAR
Sale Sold out


  • Parallel up to 10 Units
  • Separate Generator Interface Available
  • AC Coupling Function
  • Transformerless Design
  • Compatible Battery Type: Lead-acid / Lithium
  • Nominal Battery Voltage: 48VDC
  • Battery Voltage Range: 40VDC-60VDC
  • Maximum Charge / Discharge Current: 250A
  • Maximum Charge / Discharge Power: 12 000W
  • Max DC Input for Single MPPT: 12 000W / 7 000W / 7 000W
  • Maximum PV Input: 18 000W
  • DC Input Voltage Range: 100VDC-600VDC
  • Nominal DC Input Voltage: 360VDC
  • Full Power MPPT Voltage Range: 230VDC-500VDC
  • Maximum DC Input Current: 25A / 15A / 15A
  • MPPT Number / Strings per MPPT: 3(2/1/1)
  • Nominal Power: 12 000W
  • Nominal AC Voltage: 240VAC
  • Operating Voltage Range: 180VAC-270VAC
  • Maximum Continuous AC Current: 50A @ 240VAC
  • Nominal AC Frequency: 50Hz / 60Hz
  • UPS Max Output Power: 12 000W
  • UPS Nominal Output Voltage: 240VAC
  • UPS Nominal Output Frequency: 50Hz / 60Hz
  • UPS Nominal Output Current: 50A @ 240VAC
  • Peak Power: 14Kw 10Min / 16Kw 5 Min / 20Kw 500ms
  • Switching Time: <20ms
