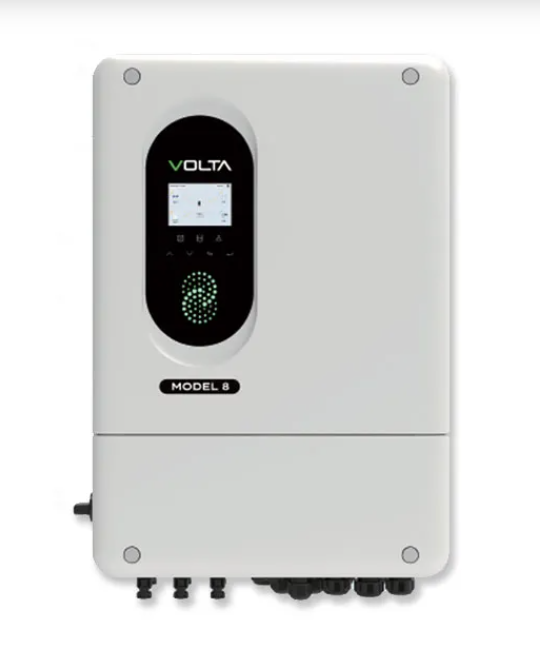

Volta 12KW Single Phase Hybrid Inverter

R 33,737.50 ZAR

Sale Sold out

High Power Capacity: Supports up to 20,000W PV input and delivers 12kW nominal AC output power.
Advanced Hybrid Technology: Combines solar, battery, and grid power with seamless switching (<4ms UPS-level).
Smart Load Management: CT compatible with responsive load control within 0.3 seconds.
Peak Performance: 200% PV oversizing and 110% AC output capability; 200% peak EPS apparent power for 10 seconds.
Efficient Charging: Max charging/discharging current of 250A for rapid battery cycling.
Wide MPPT Range: Operates efficiently across 50–550V with dual MPPTs (2/2 strings).
Durable & Safe: IP65-rated enclosure, integrated SPD, optional AFCI protection, and battery terminal temperature detection.
Flexible Compatibility: Generator-ready and supports high-power solar panels with 16A DC input current.
User-Friendly Interface: LED + LCD display with multiple communication options including CAN, RS485, USB, WiFi+LAN.
Certified & Compliant: Meets global standards including EN IEC 62109-1/-2, IEC 61727, IEC 62116, and more.
Nominal Voltage: 220/230/240V, 50/60Hz
Battery Voltage Range: 40–60V (Nominal 48V)
Cooling: Smart cooling system
Dimensions: 652.5 × 462.5 × 259.8 mm
Weight: 37.4 kg
Warranty: 5 years
