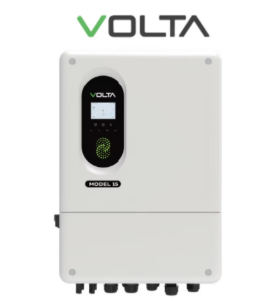

Volta 15kW Three Phase Hybrid Inverter

R 40,487.50 ZAR

Sale Sold out

High PV Capacity: Supports up to 30,000W PV input with 200% oversizing and 110% AC output capability.
Advanced Hybrid Functionality: Combines solar, battery, and grid power with UPS-level switching (<4ms typical).
Smart Load Management: CT compatible with rapid load response within 0.3 seconds.
Efficient Battery Handling: Max charging/discharging current of 300A for fast energy cycling.
Wide MPPT Range: Operates efficiently across 160–950V with dual MPPTs (2/2 strings).
Robust Safety Features: IP65-rated enclosure, integrated SPD, optional AFCI protection, and battery temperature monitoring.
Generator Compatible: Designed to work with backup generators for extended energy resilience.
User-Friendly Interface: LED + LCD display with multiple communication options including CAN, RS485, USB, WiFi+LAN.
Certified & Compliant: Meets international standards including EN IEC 62109-1/-2, IEC 61727, IEC 62116, and NRS 097-2-1.
Nominal AC Output Power: 15,000W
Peak Apparent Power: 30,000VA for 10 seconds
Nominal Voltage: 220/380V, 230/400V, 50/60Hz
Battery Voltage Range: 40–60V (Nominal 48V)
Max DC Input Current: 18A per channel
Efficiency: >99.9% MPPT, 97.6% Euro, 97.0% overall
Dimensions: 520 × 705 × 258 mm
Weight: 44.6 kg
Cooling: Smart cooling system
Warranty: 10 years
